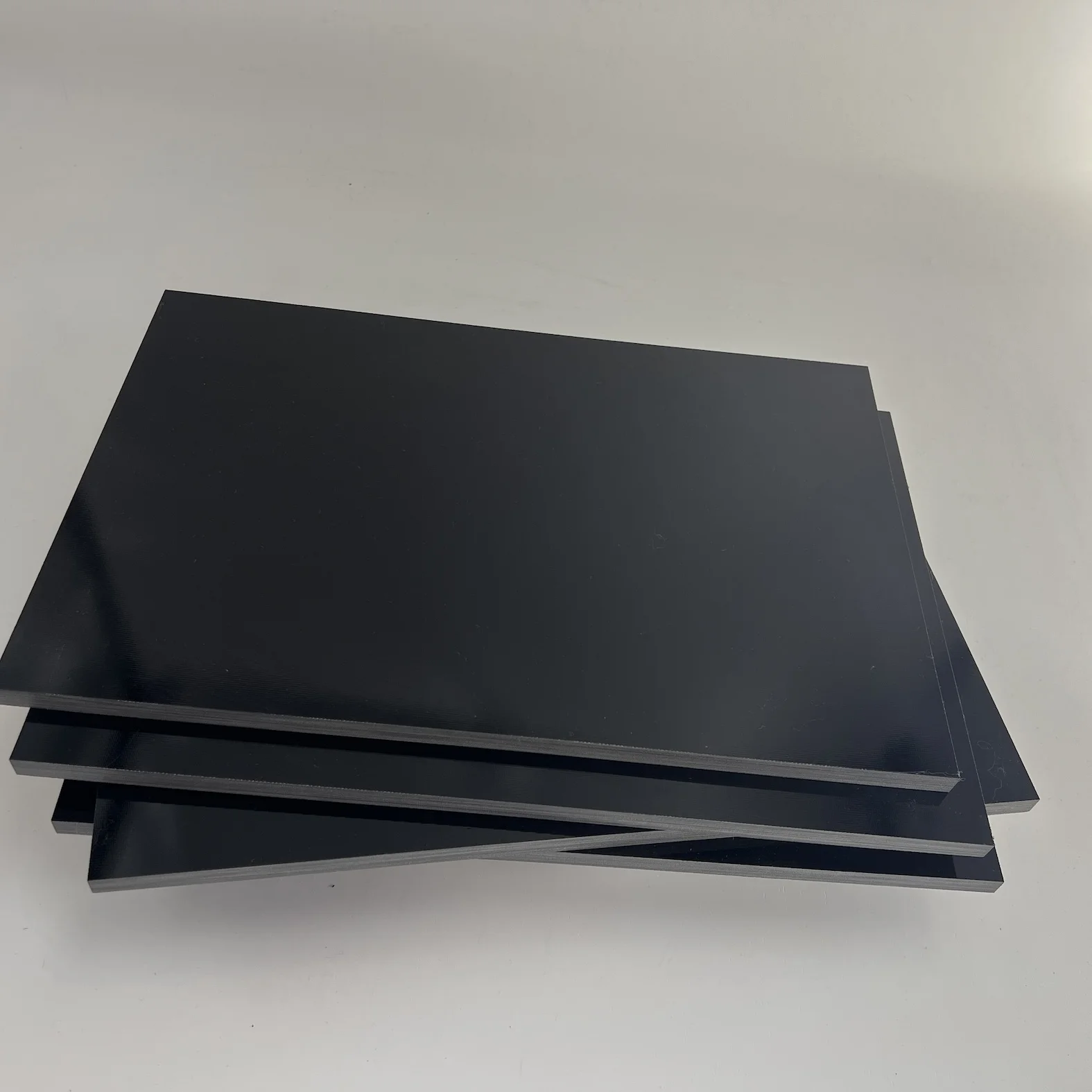

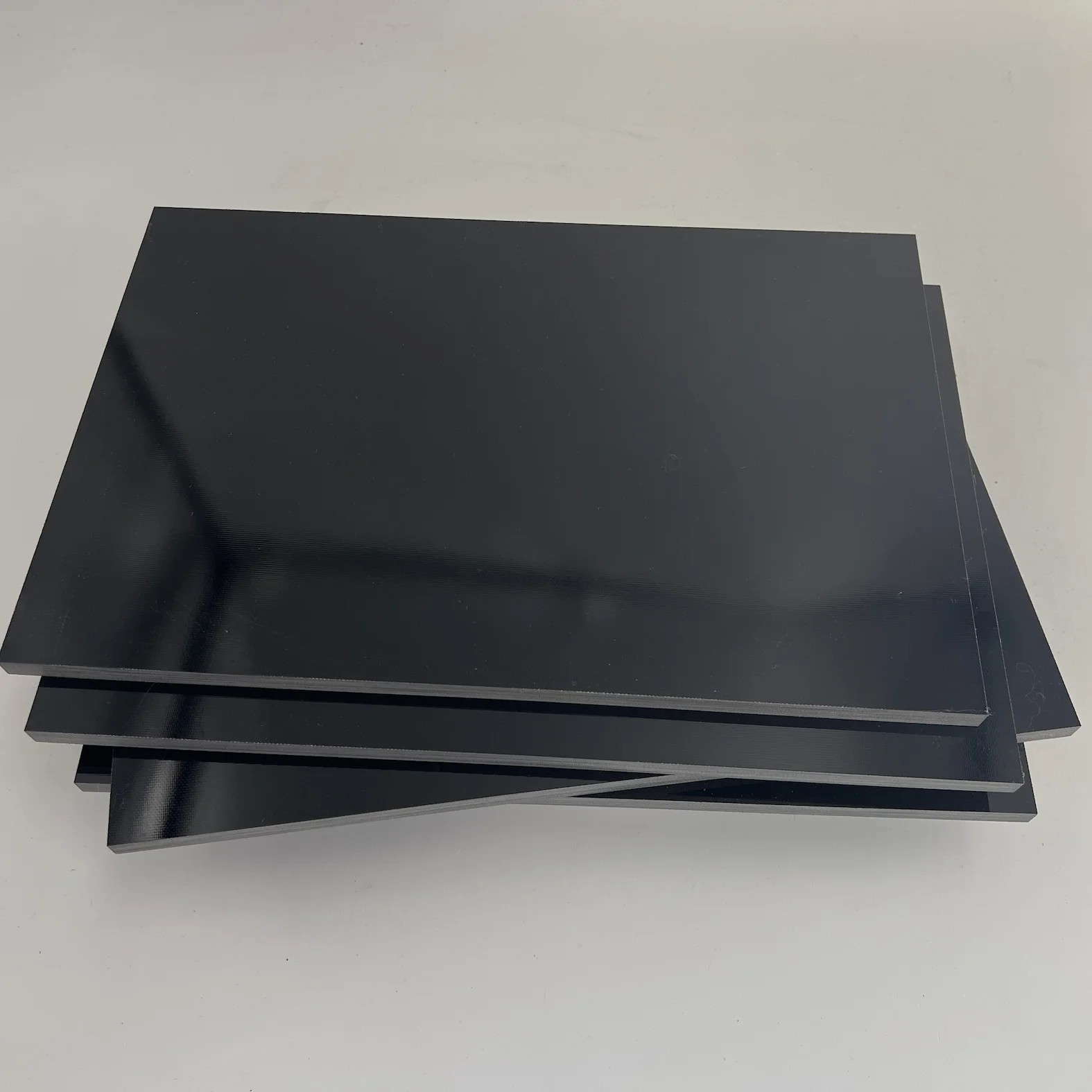

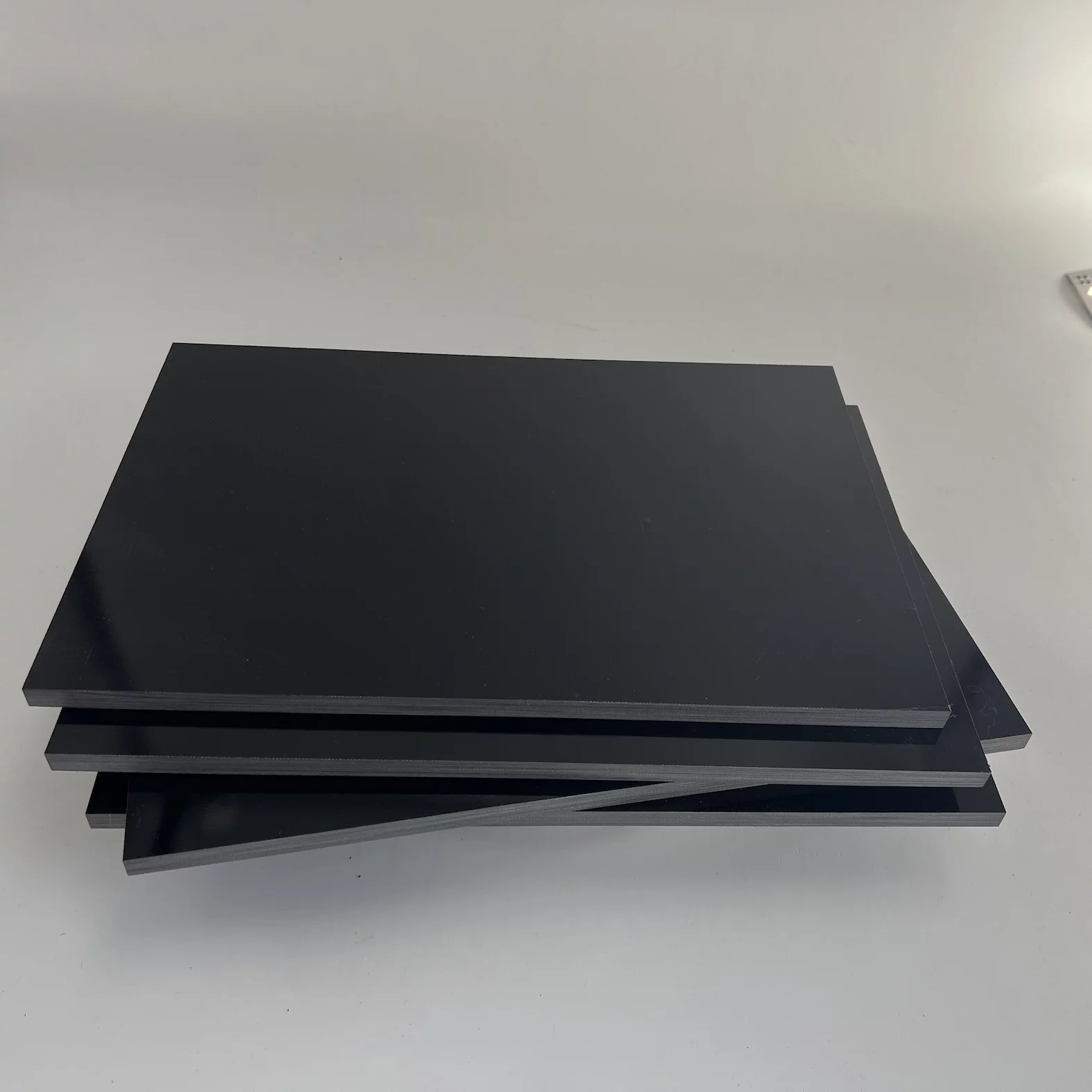

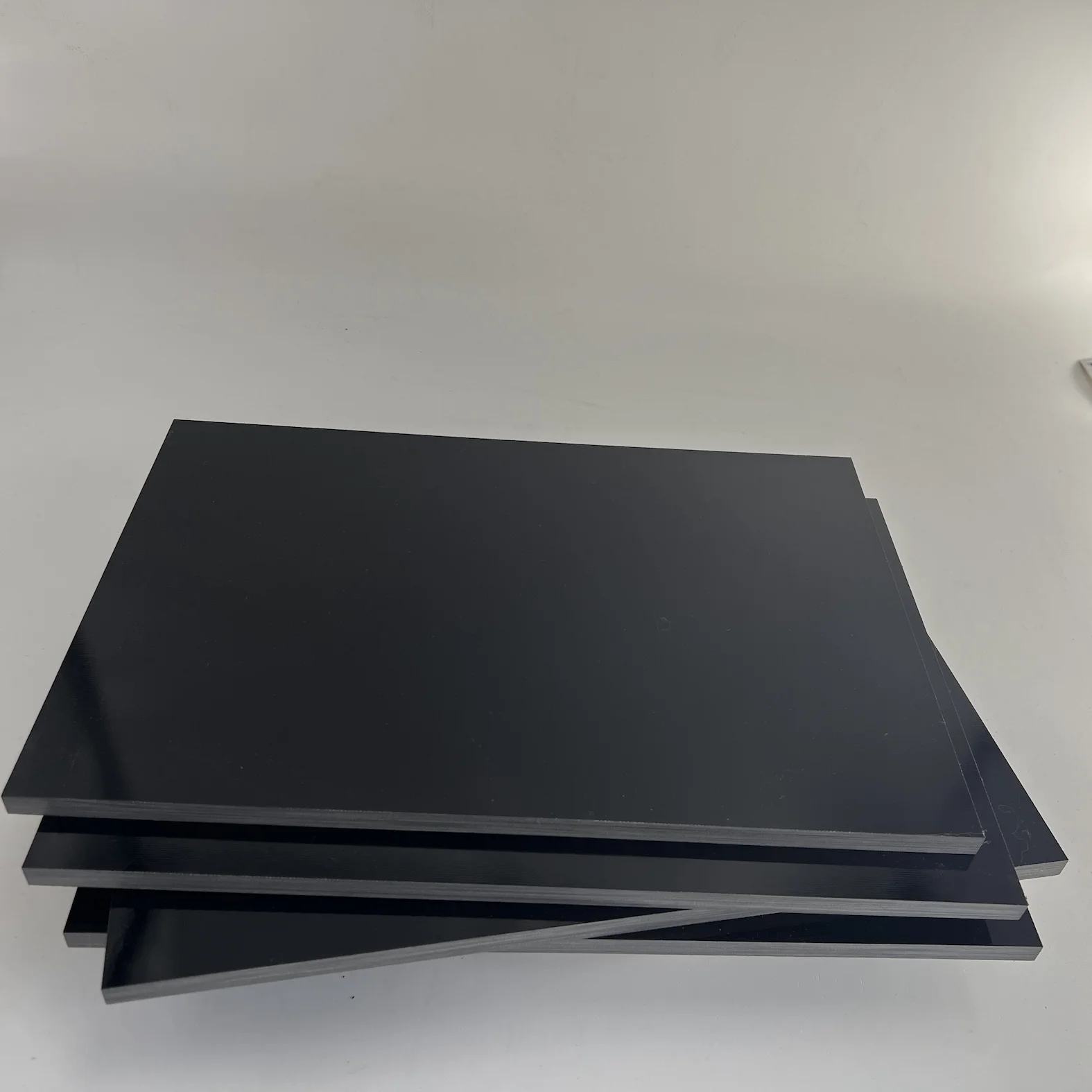

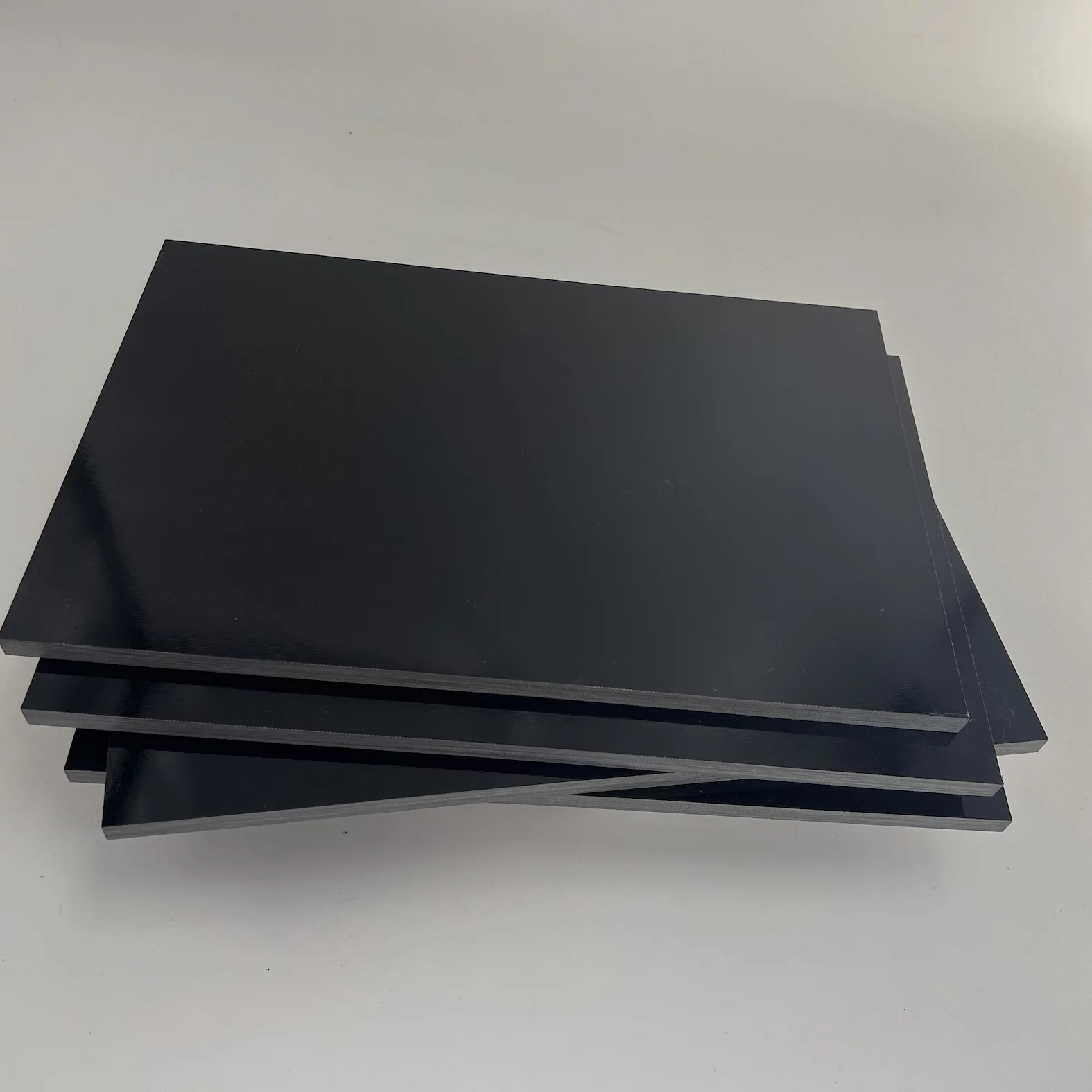

Black ESD G10/FR4 fiberglass sheet
Black ESD/Antistatic FR4/G10 Sheet
Electro-Static Dissipative material offers users a number of important advatages over other ESD products.
Anti-static laminated sheet is made from electrical glasscloth or glass mat that impregnated with epoxy resin, high temperaute resin and anti-static resin under pressure,with high mechanical strength, heat resistance, with good anti-static permeability.
Welcome to contact with us for more information and samples
ESD/Antistatic FR4/G10 Sheet
Electro-Static Dissipative material offers users a number of important advatages over other ESD products.
Anti-static laminated sheet is made from electrical glasscloth or glass mat that impregnated with epoxy resin, high temperaute resin and anti-static resin under pressure,with high mechanical strength, heat resistance, with good anti-static permeability.
Properties:
1, The overall anti-static for Antistatic fiber glass Sheet is 106-109Ωcm,
2, good heat resistance and moisture resistance;
3, Low water absorption, not easily deform;
4, high mechanical property and excellent processing performance;
6, Maximum temperature resistance 180℃;
7, (Warpage):≤0.3%(more than 10T)
8, (Thickness tolerance):±0.1mm
