About Jatmaterial

Jiujiang Jiatai Material Co., Ltd. was established in 2012, located in jiujiang city, Jiangxi province, China.

Jiatai material has high-temperature resistant resin system and composite material intellectual property rights.

Jiatai material specializes in manufacturing SMT (wave soldering and reflow soldering) high-temperature-resistant synthetic stone carrier material and stone lead-free (High heat resistant Epoxy fiberglass laminate sheet for Solder palet), which are excellent alternative materials for Röchling or Risho. and Anti-static glass fiber board (ESD), anti-static electricity wood and other composite materials.

PCB Solder Pallet Materials

Black ESD G10/FR4 fiberglass sheet

Black ESD/Antistatic FR4/G10 SheetElectro-Static Dissipative material offers users a number of important advatages over other ESD products. Anti-static laminated sheet is made from electrical glasscloth or glass mat that impregnated with epoxy resin, high temperaute resin and anti-static resin under pressure,with high mechanical strength, heat resistance, with good anti-static permeability.Welcome to contact with us for more information and samples

ESD FR4/G10 fiberglass sheet

Black ESD/Antistatic FR4/G10 Sheet Anti-static laminated sheet is made from electrical glasscloth or glass mat that impregnated with epoxy resin, high temperaute resin and anti-static resin under pressure,with high mechanical strength, heat resistance, with good anti-static permeability.Electro-Static Dissipative material offers users a number of important advatages over other ESD products.Welcome to contact with us for more information and samples

Ricocel ES-3261A(alternative)

Ricocel sheet Lead-free ES-3261A(alternative) is the industry-leader in Antistatic (ESD) Solder Pallet materials with excellent heat resistance, stable antistatic properties, machinability, durability and flux resistance.Ricocel Sheet ES-3261A is polyester compostie which include high heat resistant glass fabric and epoxy resin laminate material for solder pallet. It's alternative ESD Ricocel material with high quality and very competitive price.Welcome to contact with us for more information

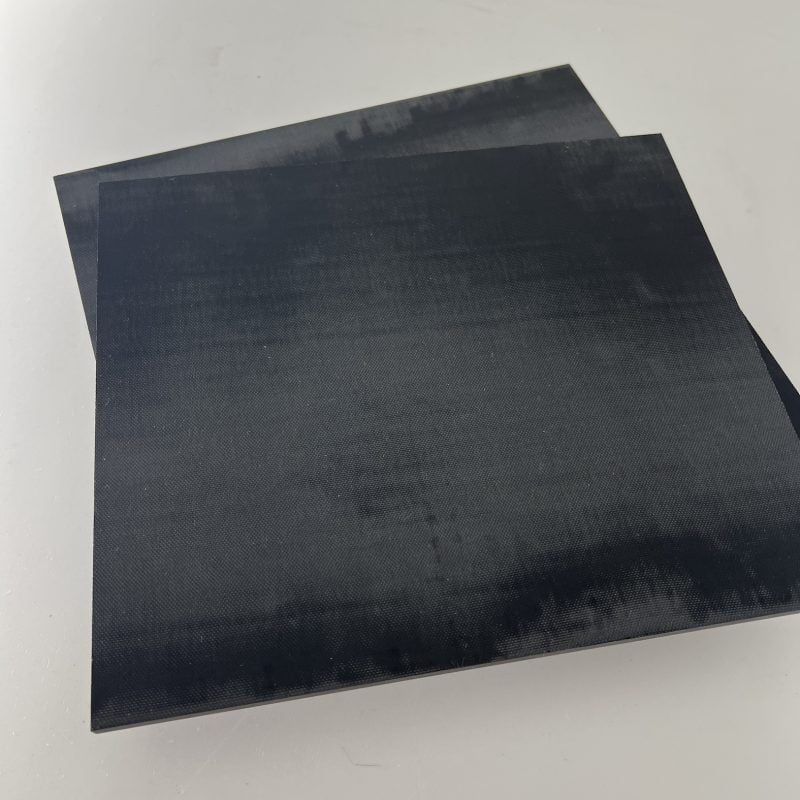

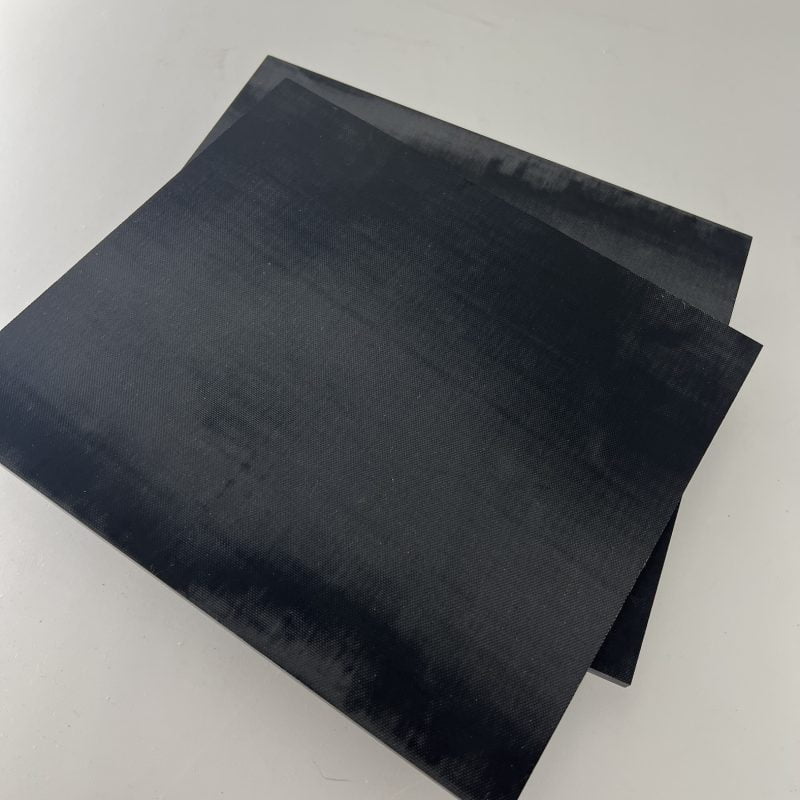

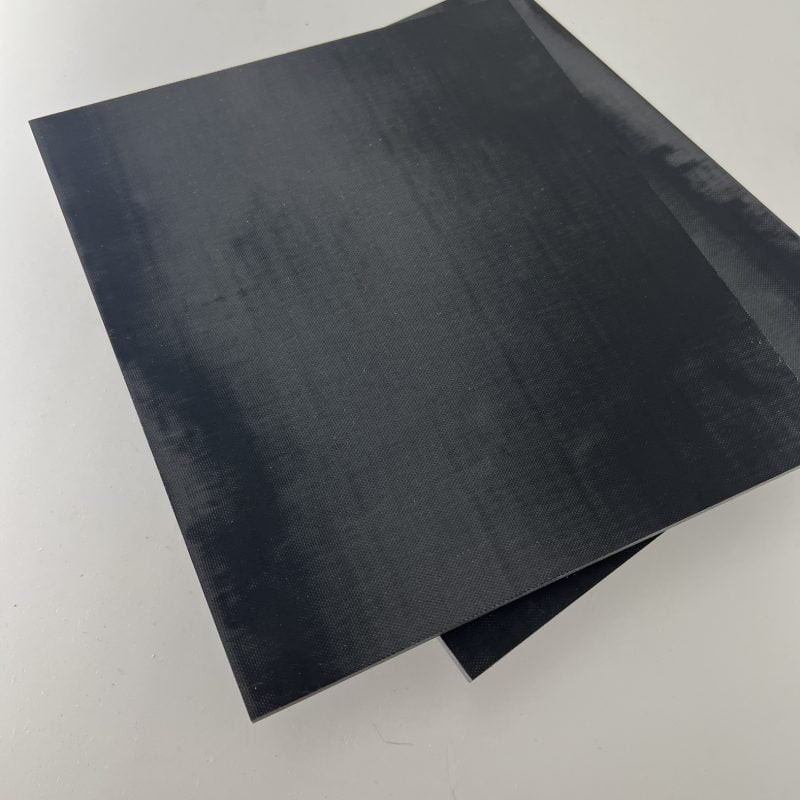

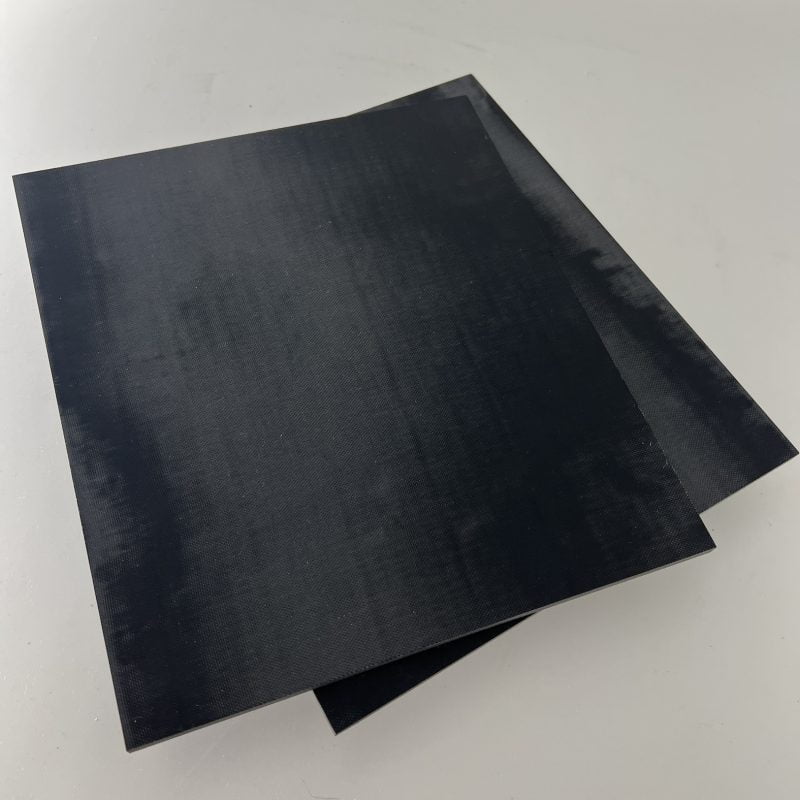

Ricocel Sheet ES-3261A(alternative)

Ricocel Sheet ES-3261A is polyester compostie which include high heat resistant glass fabric and epoxy resin laminate material for solder pallet. It's alternative ESD Ricocel material with high quality and very competitive price.RICOCEL sheet Lead-free ES-3261A(alternative) Composite Sheets is the industry-leader in Antistatic (ESD) Solder Pallet materials with excellent heat resistance, stable antistatic properties, machinability, durability and flux resistance. RICOCEL is the preferred Solder Pallet Materials for many companies starting with production operators. Even after many cycles of usage RICOCEL pallets show very little or no loose fibers that cause discomfort to operators. It is comfortable to handle in the production line and this results in higher operator morale and productivity.

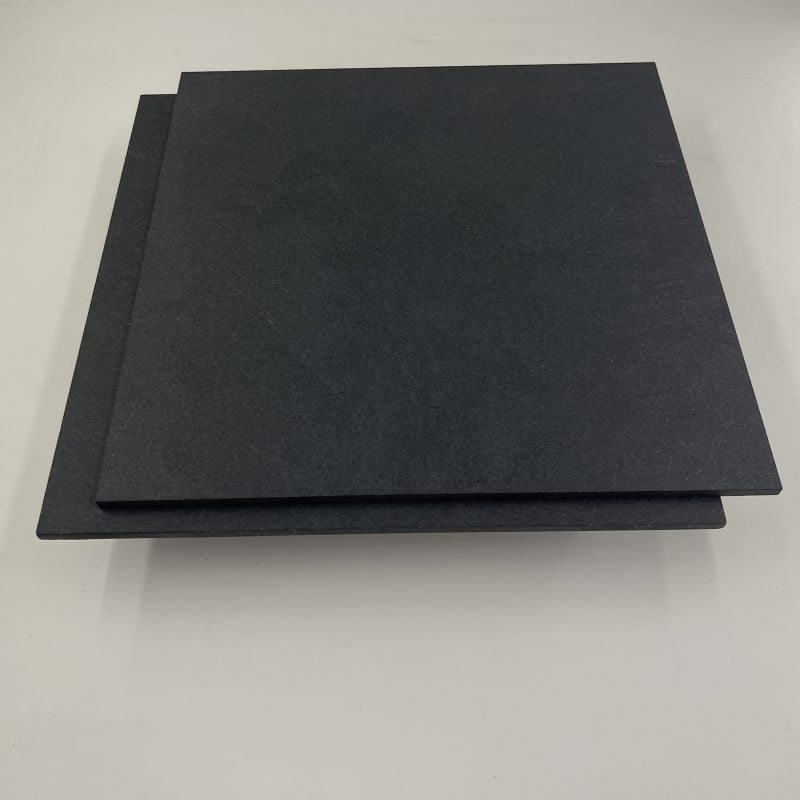

Durostone ESD anti-static black material

Black Durostone Solder Pallet materials is made from ESD anti-static black epoxy compsite material and reinforced fiberglass. In the indirect high temperature environment of 300ºC, it has good dimensional stability, corrosion resistance, low thermal conductivity, anti-static and non-flammability. Suitable for soldering protection in SMT wave soldering process, easy to process, no cracking, no peeling, no burr and no irritation to human body.

ESD ricocel solder pallet lead-free (alternative)

RICOCEL sheet Lead-free ES-3261A(alternative) Composite Sheets is the industry-leader in Antistatic (ESD) Solder Pallet materials with excellent heat resistance, stable antistatic properties, machinability, durability and flux resistance. RICOCEL is the preferred Solder Pallet Materials for many companies starting with production operators. Even after many cycles of usage RICOCEL pallets show very little or no loose fibers that cause discomfort to operators. It is comfortable to handle in the production line and this results in higher operator morale and productivity.

ESD ricocel stone lead-free ES-3261A(alternative)

RICOCEL sheet Lead-free ES-3261A(alternative) Composite Sheets is the industry-leader in Antistatic (ESD) Solder Pallet materials with excellent heat resistance, stable antistatic properties, machinability, durability and flux resistance. RICOCEL is the preferred Solder Pallet Materials for many companies starting with production operators. Even after many cycles of usage RICOCEL pallets show very little or no loose fibers that cause discomfort to operators. It is comfortable to handle in the production line and this results in higher operator morale and productivity.

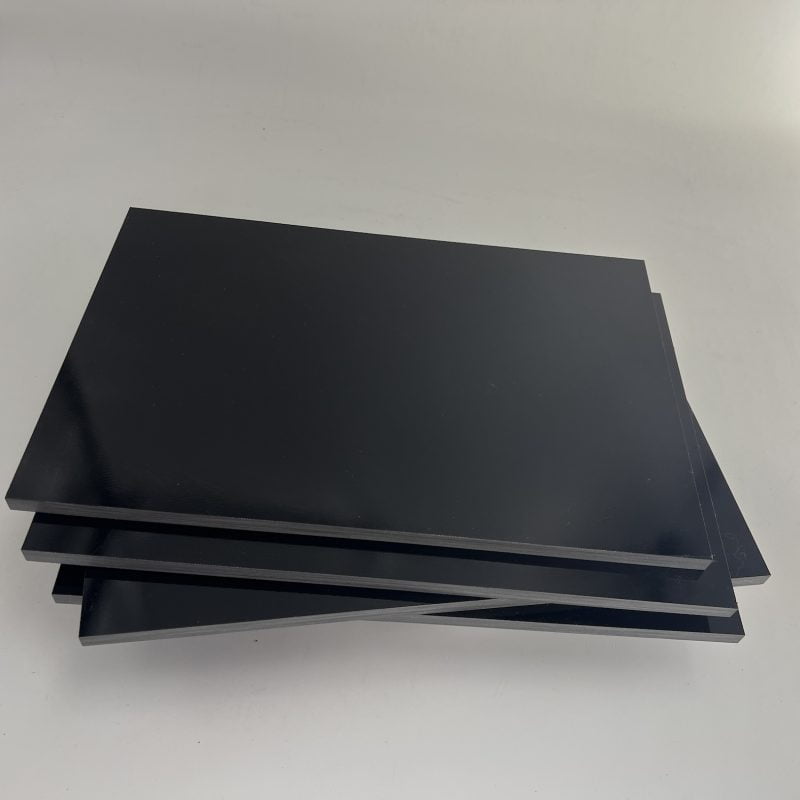

ESD black G10 fiberglass sheet

ESD Black G10 Sheet is a kind of antistatic materials which is added anti-static agents in the production of G10 sheet, and effect G10 to achieve the best antistatic performance. Substrate is an epoxy resin and fiberglass cloth. Whether surface ESD or overall ESD, ESD Black G10 sheet provides a uniform anti-static value.

Grey Wave Pallet Material

Grey Wave Pallet Material is made from anti-static optical grey reinforced fiberglass composites It is the grey ESD anti-static and optically sensitive material and suitable for infrared and optical sensors. It is suitable for all process during PCB assembly as STM reflow and wave soldering.

Durapol CDM ESD 68910(Alternative)

Durapol CDM ESD 68910(alternative) is a composite material based on fiberglass mat reinforced material, combining a dissipative, high temperature and high corrosion resistant resin system. Electrostatic discharge can damage the electronic components and circuits every day. Using the material will move the charge slowly from the circuit and ensure production quality. The durapol material has a great advantage to replacing metal solder frames. Pallet concept and processing experts can achieve very accurate tolerance processing. It is made from anti-static black high performance composites laminated material including reinformced fiberglass and epoxy resin.

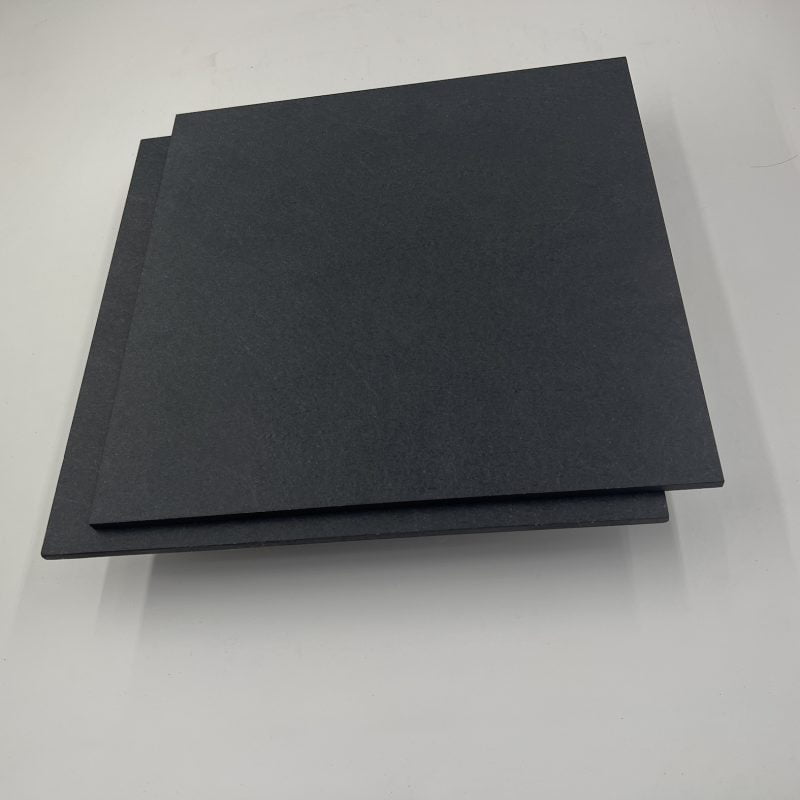

Durostone Black Solder Pallet Materials

Durostone composite material is made from ESD anti-static black epoxy compsite material and reinforced fiberglass.In the indirect high temperature environment of 300ºC, it has good dimensional stability, corrosion resistance, low thermal conductivity, anti-static and non-flammability.Suitable for soldering protection in SMT wave soldering process, easy to process, no cracking, no peeling, no burr and no irritation to human body.

Black Durostone Composite Sheet

Durostone composite material is made from ESD anti-static black epoxy compsite material and reinforced fiberglass.In the indirect high temperature environment of 300ºC, it has good dimensional stability, corrosion resistance, low thermal conductivity, anti-static and non-flammability.Suitable for soldering protection in SMT wave soldering process, easy to process, no cracking, no peeling, no burr and no irritation to human body.

Insulation Sheet

3240 Halogen-free Epoxy Phenolic Fiberglass Laminated sheet

This product is a laminated product made of electrical purposed alkali-freeglass cloth impregnated with epoxy phenolic resin by hot pressing.Thethermostablity is grade B.It has good mechanical and dielectricalproperties,Applicable to mechanical,electrical,electronic,electrical and otherfields.It is also used in the processing of insulating parts,and processed into allkinds of insulating parts and equipment insulating structural parts,which canbe used in wet environment conditions and transformer oil. The more important is this 3240 laminate is Halogen-free and fireretardant,which is eco-friendly and can be acceptable by European andAmerican markets.

Epoxy Fiberglass Laminated insulation sheet

Our company mainly produces various types of electrical insulation materials,electronic insulation and reinf orcing materials,reinforced plastic board series,high temperature resistant insulation materials series,high performance flame retardant insulation materials series and special functional composite materials.

Grade H 3250 Epoxy Fiberglass Laminated sheet

Grade H 3250 Epoxy Fiberglass Laminated sheetThis product is a laminated product which made with the chemicaltreatment electrical purposed alkali-free glass cloth as the backingmaterial,by hot pressing with high Tg epoxy resin as binder.It has high mechanical strength under high temperature,with good electrical stability under high humidity.The thermostability is grade F suitable for all kinds of motor,electric appliances, electronic and other fields.

EPGC203/China G11 Epoxy Fiberglass Laminated insulation sheet

EPGC203/China G11 Epoxy Fiberglass Laminated insulation sheetThis product is made with the electrician non-alkali glass fiber cloth as thebacking material,with high TG epoxy resin as binder via hot pressing laminatedunder 155 degree temperature.It has high mechanical strength under normaltemperature,still has strong mechanical strength,good electrical properties under dry and wet environment,can be used in damp environment andtransformer oil.It belongs to grade F heat resistance insulating material.

EPGC201/G10 Epoxy resin fiberglass cloth insulation laminate sheet

EPGC201/G10 Epoxy Fiberglass LaminatedsheetThis product is laminated by the high temperature and high pressure with electronic glassfiber cloth impregnated with brominated epoxy resin.It is with highmechanical properties, dielectric properties and flame retardant properties.It is also with good heat resistance and moisture resistance. This product is mainly used as the structure parts for Motor and electricalequipment,including all kinds of switch、electric equipment、FPC reinforcementplate、carbon film printed circuit boards、computer drilling pad、mould andsmelting equipment(PCB test flame);and also suitable under wet environmentand transformer oil.

3242 Epoxy Fiberglass Laminated sheet

3242 Epoxy Fiberglass Laminated sheetThis product is a laminated product which made with the chemicaltreatment electrical purposed alkali-free glass cloth as the backing material,by hot pressing with epoxy resin as binder.It has high mechanical strength under high temperature,with good electrical stability under high humidity.The thermostability is grade F,suitable for all kinds of motor,electric appliances,electronic and other fields.Suitable for all kinds of motor,electric appliances,electronic and other field.

EPGC204/China FR-5 Epoxy Fiberglass Laminatedsheet

EPGC204/China FR-5 Epoxy Fiberglass LaminatedsheetThis product is laminated by the high temperature and high pressure withelectrician used alkali free glass fiber cloth impregnated with special epoxyresin,it belongs grade F heat resistance insulation material.It has highmechanical properties under medium temperature, and stable electricalperformance under high temperature .It is suitable used inmechanical,electrical and electronic as the high insulation components.It hashigh mechanical strength,thermal state mechanical strength,fireresistance,heat resistance and humidity resistance.

FR4 Epoxy resin fiberglass cloth insulation laminate sheet

EPGC202/FR-4 Epoxy Fiberglass Laminated sheetThis product is laminated by the high temperature and high pressure with electronic glassfiber cloth impregnated with brominated epoxy resin.It is with highmechanical properties, dielectric properties and flame retardant properties.It is also with good heat resistance and moisture resistance. This product is mainly used as the structure parts for Motor and electricalequipment,including all kinds of switch、electric equipment、FPC reinforcementplate、carbon film printed circuit boards、computer drilling pad、mould andsmelting equipment(PCB test flame);and also suitable under wet environmentand transformer oil.

Solder Pallet Accessories

Clamps for ICT fixture

SS handle for wave solder pallet and FCT fixture is positioned on wave solder pallets and FCT fixtures ,easily handling.1. Free Sample 2.Quality assurance 3.Easily operating 4.Fast Delivery 5.Size(mm):dia8 x 40 x 107

buckle and hings for connecting top hat and Solder pallet

Specifications1.Free samples . 2.Hight temperature resistent. 3.Dowel pin for top hat fixture and Hung for main wave solder pallet. 4.Connecting wave solder pallet and top hat.

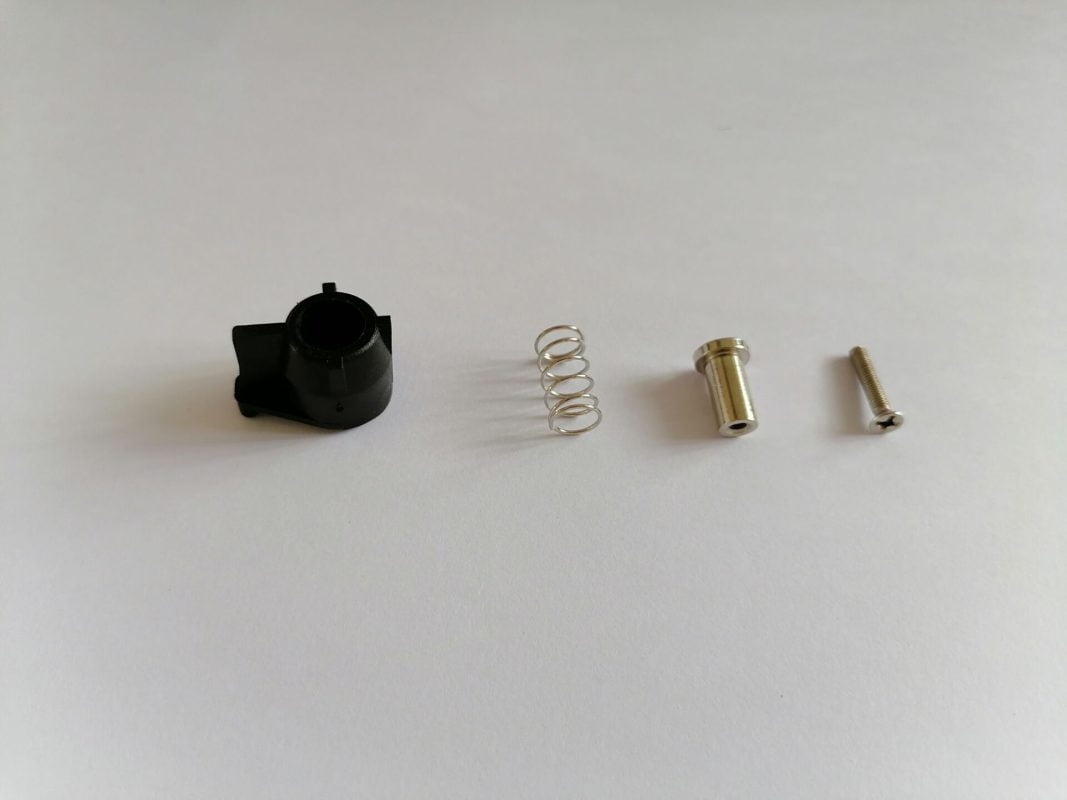

clamps for locking PCB

sold pallet hold down 1.Free samples 2.Hight temperature resistent. 3.Position PCB substrate to avoid from floating

clamps for pressing components on PCB

Description: Press Components Hold Downs Clamps for Top Hat/Components Clamp Hold downs used to press PCB components to protect it from floating and lifting under wave solder process so as to create excellent solder tin.Screw material: Stainless steel or easy cut iron with electroplated nickel finish
